Vac-u-Gun

The Vac-u-Gun is a low cost solution to a wide variety of industrial housekeeping problems. The Vac-u-Gun is a vacuum gun, a blow gun and a transfer tool all-in-one. Lightweight and easy to use, the Vac-u-Gun has durable die cast construction with no moving parts to wear out.

The Vac-u-Gun uses less compressed air than an ordinary blow gun. It injects a small amount of compressed air through directed nozzles to produce a vacuum on one end and a high output flow on the other. The amplified output flow is 12 times the air consumption rate.

The Vac-u-Gun offers a more efficient way to blowoff, cool, dry and clean. In vacuum mode, work surfaces can be easily cleaned by vacuuming the debris away instead of blowing it off the surface only to sweep it up later. In blow mode, the Vac-u-Gun has a large 1-1/4″ (32mm) diameter that allows it to cover more surface area in less time compared to ordinary air guns. Transferring materials over long distance is also possible using the smooth bore vacuum hose.

Applications
Advantages

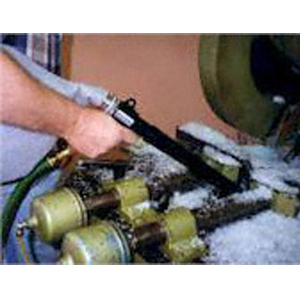

  • Vacuum shavings
  • Vacuum absorbent

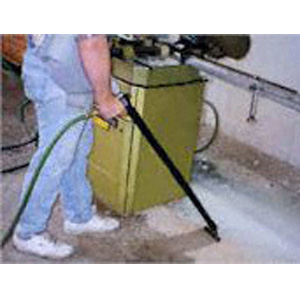

  • Vacuum sawdust
  • Vacuum spills
  • Transfer small parts
  • Transfer pellets
  • Transfer trim
  • Blow chips
  • Blow water
  • Blow coolant
  • Blow scrap
  • No moving parts-maintenance free
  • Low cost
  • Durable – die cast construction
  • Safe – no electricity
  • Meets OSHA pressure requirements
  • Vacuum or blowoff
  • Lightweight and portable
  • Quiet
  • Versatile
