Ion Air Cannon

EXAIR’s Ion Air Cannon neutralizes static electricity and cleans at distances up to 15 feet (4.6m) with no moving parts. It is ideal for those hard to reach spaces or confined areas that require a concentrated flow of static eliminating ions. With an optional pressure regulator, the air volume and velocity are infinitely adjustable over a wide range, for light to heavy duty applications.

Category:

The Ion Air Cannon will maximize airflow while minimizing compressed air consumption. A small amount of compressed air is used to entrain a high volume flow of surrounding air. This combined stream is ionized by an emitter point (shockless) and delivered to the charged surface. A hose or tube can be connected to the air intake of the Ion Air Cannon to draw quality air from another area.

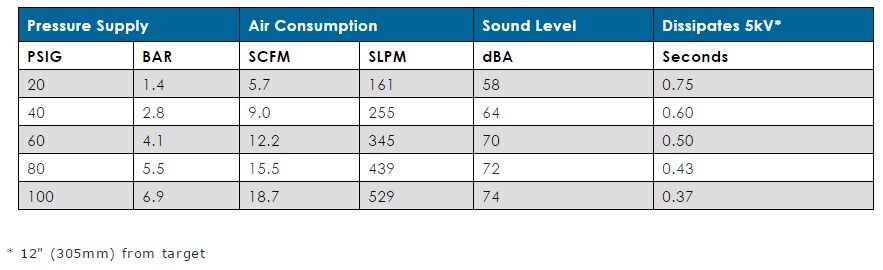

It requires only 10 PSIG (0.7 BAR) for most applications. The compact design saves bench space and allows mounting in confined areas. The sturdy stand is predrilled and can be bench, wall or machine mounted. It incorporates a swivel adjustment for directing the airflow.

Applications
Advantages
  • Bag opening – form and fill
  • Clean and neutralize three dimensional parts
  • Neutralizing shrink wrap
  • Cleaning molded parts
  • Removing static on electronic assemblies
  • Pre-paint dust removal
  • Neutralizing slitting operations
  • Package cleaning
  • Container neutralization
  • Low air consumption
  • Rapid static decay
  • Quiet
  • Shockless, non-radioactive
  • Compact, rugged, easy to install
  • Intake can be ducted
  • No moving parts – low maintenance
  • Variable force and flow
  • Electromagnetic shielded high voltage cable
  • Armored high voltage cable protects against abrasion, cuts
  • Integrated ground design requires no separate ground connection
  • Replaceable emitter points
