Adjustable Spot Cooler

A low cost, reliable, maintenance free solution to a variety of industrial spot cooling problems. With the turn of a knob, you can select the temperature best suited to your application. The Adjustable Spot Cooler provides a precise temperature setting from -30°F (-34°C) to room temperature.

The Adjustable Spot Cooler incorporates a vortex tube that converts an ordinary supply of compressed air into cold air.

  • Temperatures from -30° to +70°F (-34°C to 21°C)
  • Parts included for flow rates from 15 to 30 SCFM (425 to 850 SLPM) – 25 SCFM (708 SLPM) generator factory installed
  • Refrigeration up to 2000 Btu/hr. (504 Kcal/hr.)

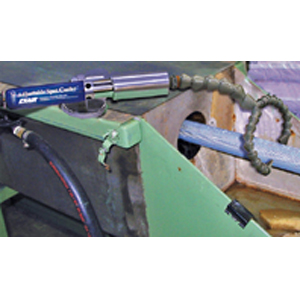

A swivel magnetic base provides easy mounting and portability.  Flexible tubing that holds its position directs the cold air.  No moving parts or CFC’s assures maintenance free operation.

Category:

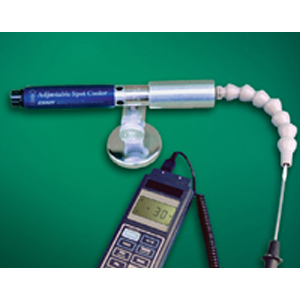

The Adjustable Spot Cooler is quiet (less than 75 dBA), easily set with a thermometer and holds the temperature setting. It’s ideal for applications where mist or liquid cooling can not be used due to part contamination or cost. Tolerances, product finish and production rates can improve dramatically.

The Adjustable Spot Cooler is available with either a single point or dual point hose kit. The single point system (Model 3825) is recommended for cooling a small surface like solder joints, hot melts or drilled plastics. The dual point system (Model 3925) is recommended when heat is generated over a larger surface area.

Applications
Advantages
  • Adjusting thermostats
  • Cooling solder

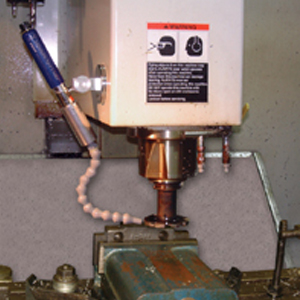

  • Cooling machined plastics
  • Setting hot melts
  • Cooling welding horns
  • Cooling molded plastics

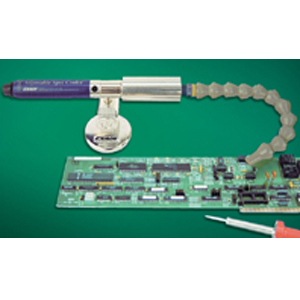

  • Electronic component cooling
  • Cooling gas samples
  • Cooling environmental chambers
  • No moving parts
  • Low cost
  • Interchangeable generators
  • No electricity or chemicals
  • Instant cold air
  • Quiet – less than 75 dBA
  • Swivel magnetic base
  • Small, lightweight
  • Maintenance free

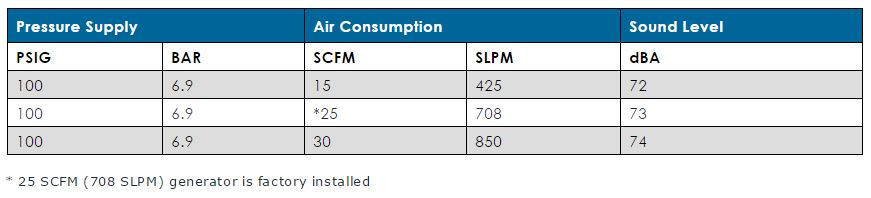

The Adjustable Spot Cooler System can produce a full range of airflows and temperatures as determined by the knob setting and a small internal part called a generator. The generators control the SCFM (SLPM) of air consumption and are easily interchangeable.

The Adjustable Spot Cooler has a 25 SCFM (708 SLPM) generator installed that produces up to 1,700 Btu/hr. (429 Kcal/hr.). If less cooling is desired, the 15 SCFM (425 SLPM) generator which delivers 1,000 Btu/hr. (252 Kcal/hr.) can be installed. If more cooling is needed, the 30 SCFM (850 SLPM) generator can be installed for up to 2,000 Btu/hr. (504 Kcal/hr.).
